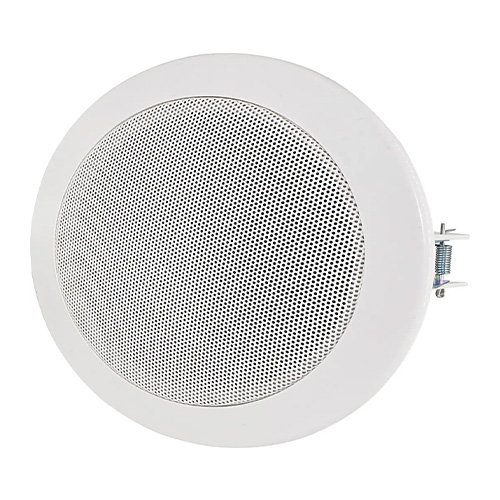

ECS-SE06M
Ceiling Speaker, Metal Body, 6W
Features
- High quality ceiling speaker with stylish metal frame and metal grille provides
high sound output ina wider area. Full range speaker for speech and music
reproduction.
- 100V line operation with power taps 6w, 3w and 1.5w.
- 6″full range speaker, 6W/100V.
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring loaded wing clamps.
TECHNICAL SPECIFICATIONS
| Rated Power / Max. Power |
6W / 9W |
| Power Tappings |
6W – 3W – 1.5W |
| SPL at 1W (at 1Khz,1m) |
92 dB |
| Impedance |
1667/3333/6666 ohm |
| Frequency range (-10 dB) |
60 Hz – 15KHz |
| Dimensions |
199mm (OD)x70mm (H) |
| Cutout Diameter |
165mm |
| Weight |
0.730 Kg |
| Material |
Metal |
| Color |
White |
