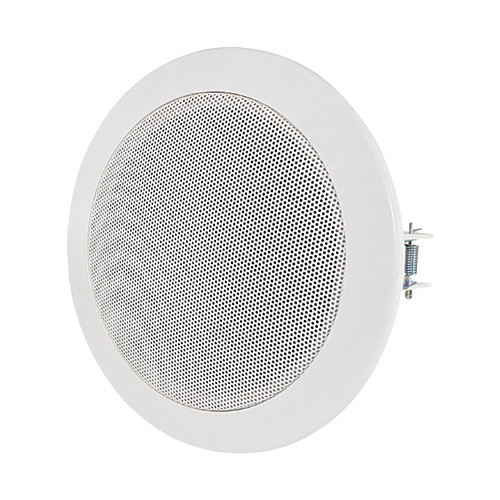

ECS801-20
Ceiling Speaker, ABS Body,20W
Features
- High quality ceiling speaker with stylish frame and grille provides high sound
output ina wider area. Full range speaker for speech and music reproduction.
- 100V line operation with power taps 20w, 10w and 5w.
- 8″ full range speaker, 20W/100V.
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring loaded wing clamps.
TECHNICAL SPECIFICATIONS
| Rated Power / Max. Power |
20W / 30W |
| Power Tappings |
20W – 10W – 5W |
| SPL at 1W (at 1Khz,1m) |
93 dB |
| Impedance |
500/1000/2000 ohm |
| Frequency range (-10 dB) |
50 Hz ~14KHz |
| Dimensions |
251mm (OD)x 95mm (H) |
| Cutout Diameter |
220mm |
| Weight |
1.170 Kg |
| Material |
ABS |
| Color |
White |
