| Technical Specifications | |
|---|---|
| Rated Power / Max. Power | 6W / 9W |
| Power Tappings | 6W – 3W – 1.5W |
| SPL at 1W (at 1Khz,1m) | 90 dB |
| Impedance | 1667/3333/6666 ohm |
| Frequency range (-10 dB) | 60 Hz ~15KHz |
| Dimensions | 173mm (OD)x 78mm (H) |
| Cutout Diameter | 155mm |
| Weight | 0.72 Kg |
| Material | ABS Frame & Metal Grille |
| Color | White |

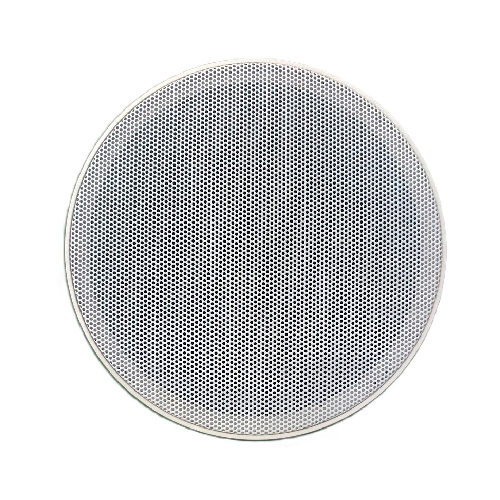

ECS604-RL
Ceiling Speaker, Metal Grill, 6W
Features
- High quality ceiling speaker with stylish metal grille and rimless frame.
- Full range speaker for speech and music reproduction.
- 100V line operation with power taps 6W,3W and 1.5W.
- 6’’ Full range speaker, 6W/100V
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring loaded wing clamps
Description
Data Sheet
