| Technical Specifications | |
|---|---|
| Rated Power / Max. Power | 6W / 9W |
| Power Tappings | 6W – 3W – 1.5W |
| SPL at 1W (at 1Khz,1m) | 86 dB |
| Impedance | 1667 / 3333 / 6666 ohm |
| Frequency range (-10 dB) | 70 Hz ~15KHz |
| Dimensions | 95mm (OD)x 80mm (H) |
| Cutout Diameter | 85.0mm |
| Weight | 0.38 Kg |
| Material | ABS |
| Color | White |

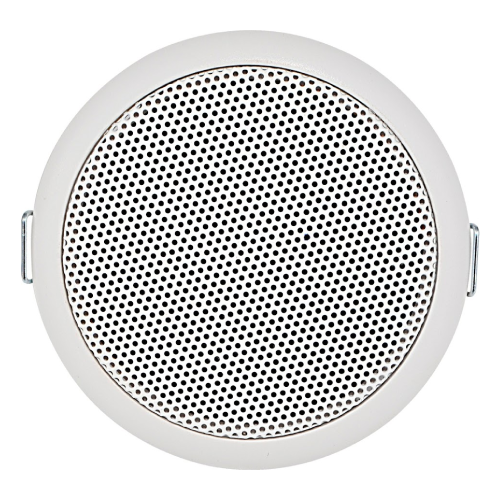

ECS303-06
Compact Ceiling Speaker, Metal Grille, 6W
Features
- High quality compact ceiling speaker with stylish frame and grille.
Full range speaker for speech and music reproduction. Designed to fit in
almost any location especially where space is limited. - 100V line operation with power taps 6w, 3w and 1.5w.
- 3″ full range speaker, 6W/100V.
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring clamps.
Description
Data Sheet
