| Technical Specifications | |
|---|---|
| Rated Power / Max. Power | 12W / 18W |
| Power Tappings | 12W – 6W – 3W |
| SPL at 1W (at 1Khz,1m) | 92 dB |
| Impedance | 833/1667/3333 ohm |
| Frequency range (-10 dB) | 60 Hz ~15KHz |
| Dimensions | 189mm (OD)x 90mm (H) |
| Cutout Diameter | 170mm |
| Weight | 0.77 Kg |
| Material | ABS |
| Color | White |

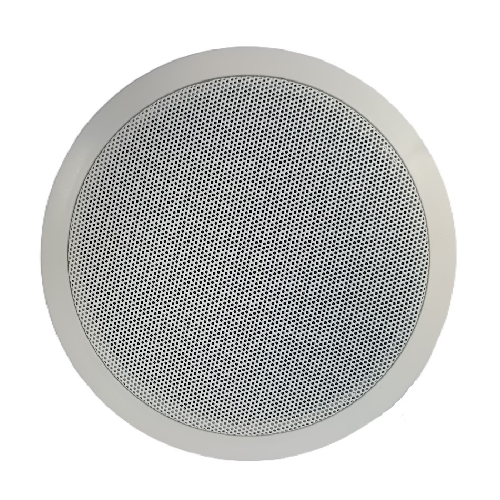

ECS603-12
Ceiling Speaker, ABS Body, 12W
Features
- High quality ceiling speaker with stylish ABS frame and metal grille provides
high sound output in a wider area. - 100V line operation with power taps 12W, 6W and 3W.
- 6’’ Full range speaker for speech and music reproduction, 12W/100V
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring loaded wing clamps
