| Technical Specifications | |
|---|---|
| Rated Power / Max. Power | 6W / 9W |
| Power Tappings | 6W – 3W – 1.5W |
| SPL at 1W (at 1Khz,1m) | 89 dB |
| Impedance | 1667/3333/6666 ohm |
| Frequency range (-10 dB) | 125 Hz ~16KHz |
| Dimensions | 149mm (OD)x 70mm (H) |
| Cutout Diameter | 116mm |
| Weight | 0.470 Kg |
| Material | ABS |
| Color | White |

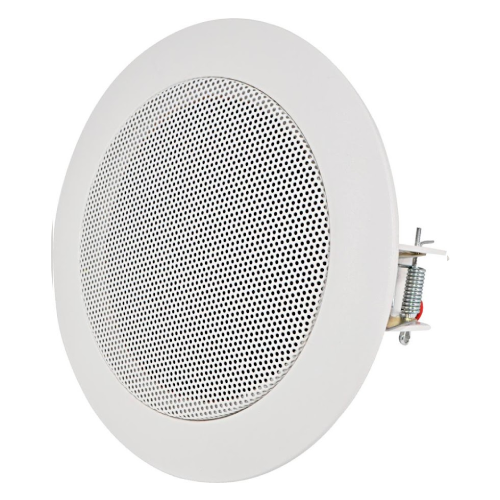

ECS-CP06
Ceiling Speaker ABS Body with Metal Grill,6W
Features
- High quality ceiling speaker with stylish frame and grille provides high sound
output in a wider area. Full range speaker for speech and music reproduction. - 100V line operation with power taps 6w, 3w and 1.5w.
- 4″ full range speaker, 6W/100V.
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring loaded wing clamps.
