| Technical Specifications | |
|---|---|
| Rated Power / Max. Power | 6W / 9W |
| Power Tappings | 6W – 3W – 1.5W |
| SPL at 1W (at 1Khz,1m) | 86 dB |
| Impedance | 1667 / 3333 / 6666 ohm |
| Frequency range (-10 dB) | 80 Hz ~15KHz |
| Dimensions | 110mm (OD)x 85mm (H) |
| Cutout Diameter | 82.0 mm |
| Weight | 0.54 Kg |
| Material | ABS |
| Color | White |

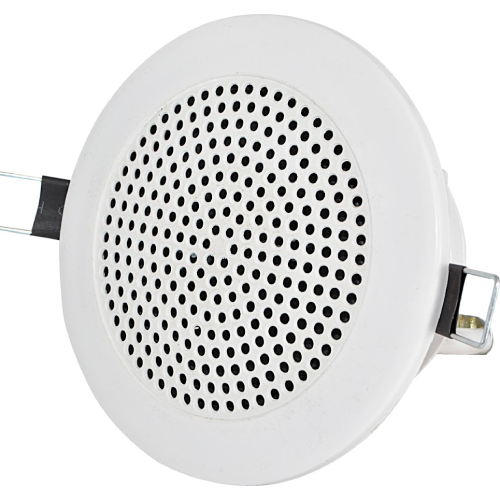

ECS301-06
Compact Ceiling Speaker, ABS Grille, 6W
Features
- High quality compact ceiling speaker with stylish frame and grille.
Full range speaker for speech and music reproduction. Designed to fit in almostany location especially where space is limited. - 100V line operation with power taps 6w, 3w and 1.5w.
- 3″full range speaker, 6W/100V.
- Ideal for railways and metro station, factories, offices, shops, malls etc.
- Easy mounting with spring clamps.
